カールハンセンショールーム階段
- テキスト

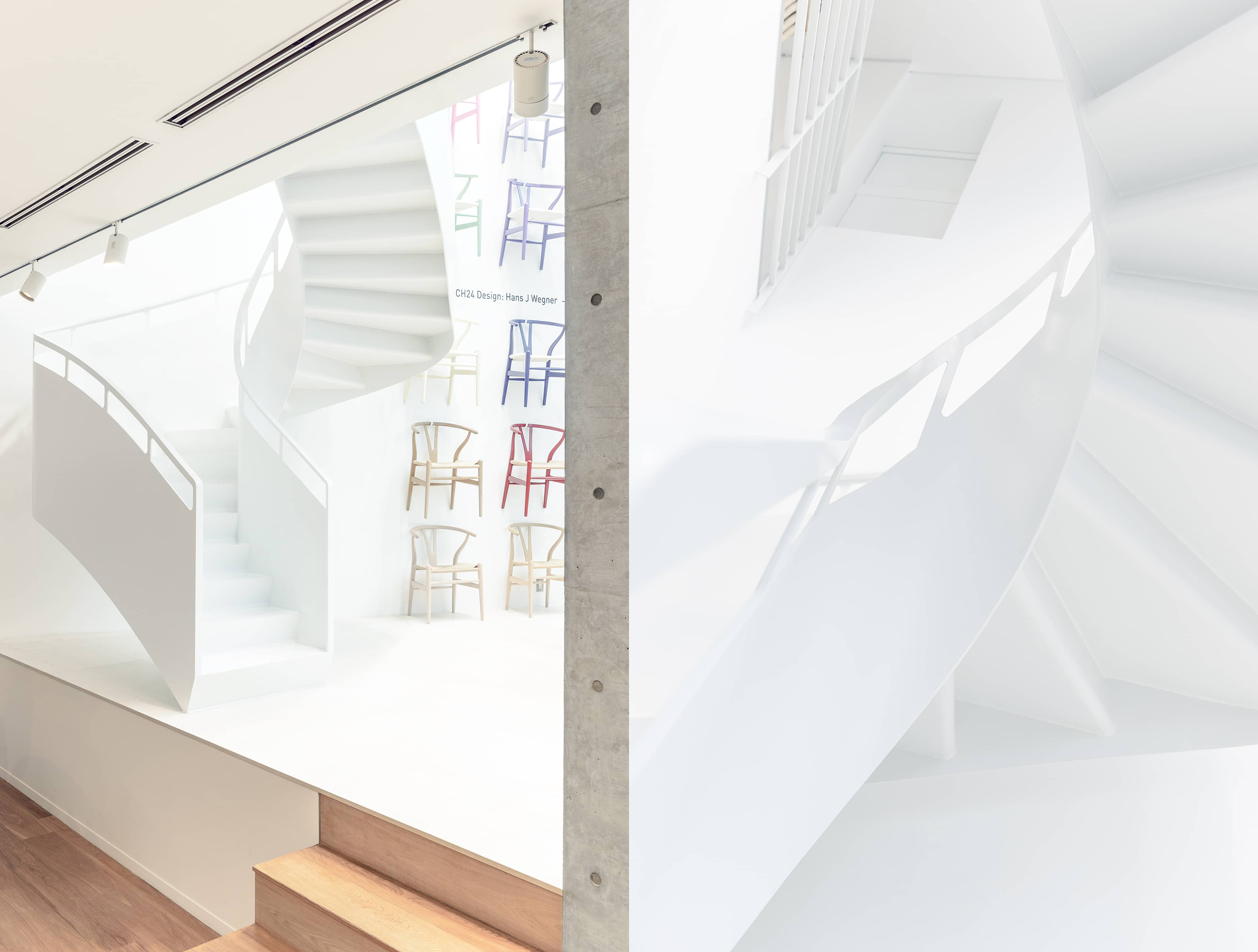

2020年東京オリンピックメイン会場の近く、外苑前にオープンしたカールハンセン・フラッグシップショップの階段。外苑西通り沿いの交差点にあるテナントビルの1-2階という好立地、3方向からファサードガラス越しに階段が望める。店舗のディスプレイに対して背景かつ、印象的な造形という相反した有り様を目指した。特徴的な三角形螺旋の平面は、既存建物の平面形状に合わせ空間を最大限確保しつつ、快適に昇降できるよう意図した結果である。建築的なディテールがそぎ落とされ、すべて白塗装された階段は、模型がそのまま立ち上がったような不思議な佇まいで、白いRC壁面の店内空間と調和している。

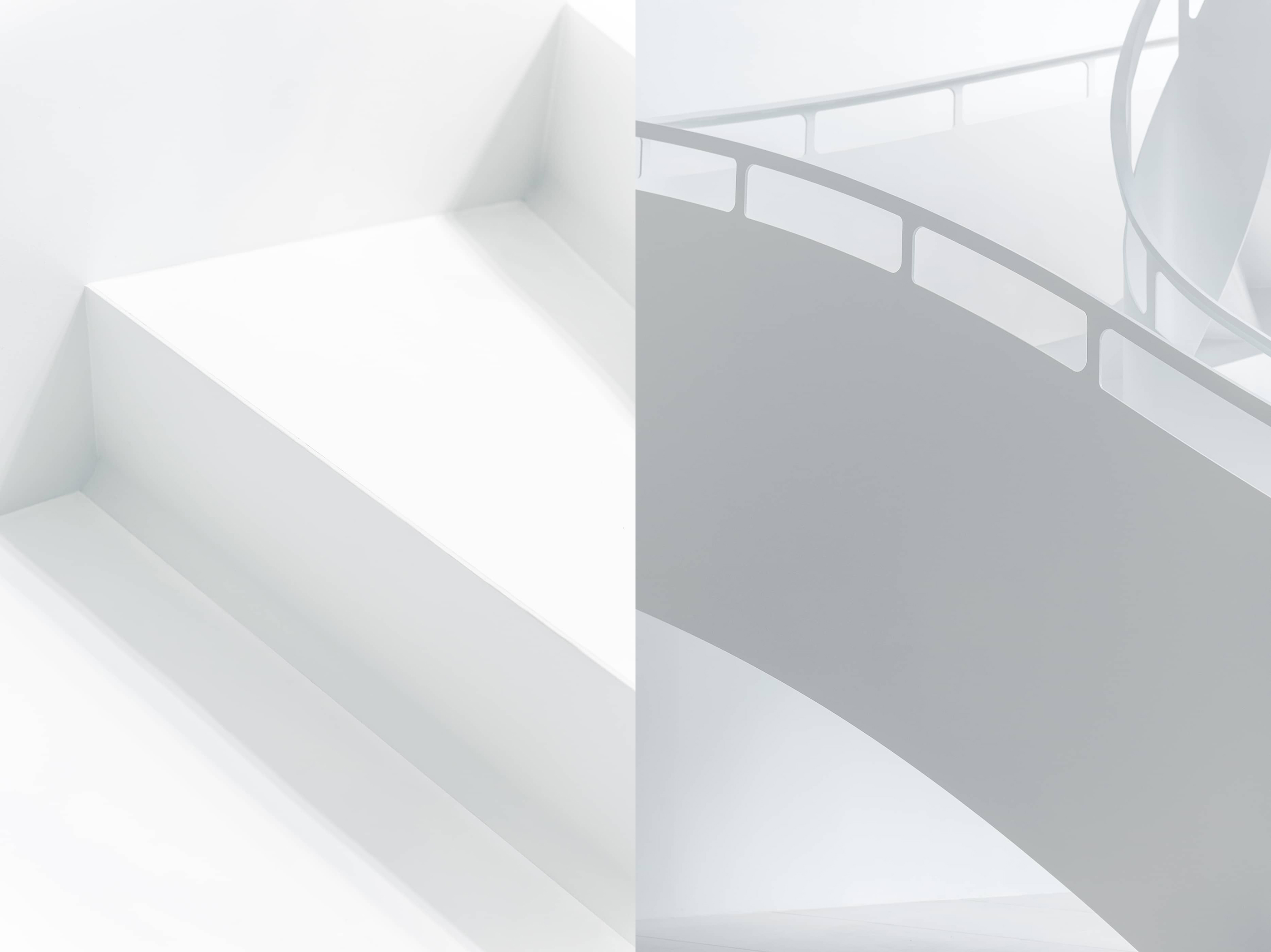

9mmと4.5mmの鋼板で構成され、ささら桁が手摺りへと連続する。構造的には片側のささら桁のみで成立するが、ファサード正面からの彫刻的な見え方、子どもが転落しないようにという安全性への配慮から両側に設けた。幅1200mmの出入り口しかなく、使える重機の制限、短工期という条件から、工場で3分割で製作、現場溶接で組み上げている。内側の曲げ内径は200mm程度と小さいため、製作には高い技術を必要としている。
- プロジェクトデータ
プログラム|屋内階段
設計期間 | 2014
施工期間|2014
クライアント|Carl Hansen & son Japan
総工費|325万円
規模|幅0.9m,高さ3.6m
意匠・構造 | Ney & Partners
所在地 | 日本, 東京
クレジット | momoko japan
PROJECT
Carl Hansen Staircase
- Texts
Ney & Partners have designed a staircase for the first flagship shop of Carl Hansen in Japan. It is very well situated within Gaien-Mae, close to the new Olympic Stadium for 2020 and in front of the crossing of Gaien-Nishi Street, one of main streets in Tokyo. The shop comprises 2 floors and has a glass façade which offers an ideal opportunity for marketing and advertisement. The staircase has been designed to be both functional and an element of interior decoration. Furthermore, our ambition was to create an impressive architectural form which attracts the attention of the passer-by. The characteristic triangular spiral shape results from an effort to maximise floor space while creating the most comfortable way of climbing the staircase. All the detailing has been thoroughly thought through. The white colour is in accordance with the white concrete walls and gives it the lightness of a paper model.
Specific features|
The staircase’s railing is designed as part of the structure and consists of 9mm plate girders. The steps are made from 4.5 mm steel plates. It would have been possible to use only one side of the railing structurally, but we chose to use both, so that it becomes a more accentuated sculptural form and the safety of children is guaranteed. Difficult building conditions meant there was no possibility to use heavy machinery, the existing entrance was limited to only 1,2m and the construction schedule was extremely tight. Therefore we designed the staircase in 3 parts which were welded together on site. The curvature of the inner railing plate is R 200mm, which required highly skilled steel craftsmen to achieve its clean and smooth surface.- PROJECT DATA
Program| Complete architectural and structural design of staircase
Study | 2014
Execution|2014
Client|Carl Hansen & Son, Japan
Budget|3,250,000yen
Scale|Width 0.9m, Height 3.6m
Architect & Engineer | Ney & Partners
Site | Tokyo, Japan
Image credit | Ney & Partners, momoko japan
